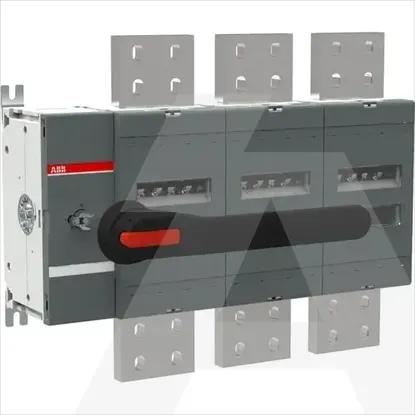

1SCA128481R1001 | OT3200E03P
Code: 1982606
ManufacturerABB
Catalog number1SCA128481R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019582672
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Width514mm
Rated operation power at AC-3, 400 V-kW
Height410mm
Depth146mm
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Version as safety switchNo
Number of auxiliary contacts as normally closed contact0
Number of switches1
Width in number of modular spacings-
Version as emergency stop installationNo
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
InterlockableNo
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Version as main switchYes
Version as maintenance-/service switchYes
Rated short-time withstand current lcw65kA
Device constructionComplete device in housing
Motor drive optionalNo
Voltage release optionalNo
Colour control elementBlack
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V-kW
Switching power at 400 V-kW
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
