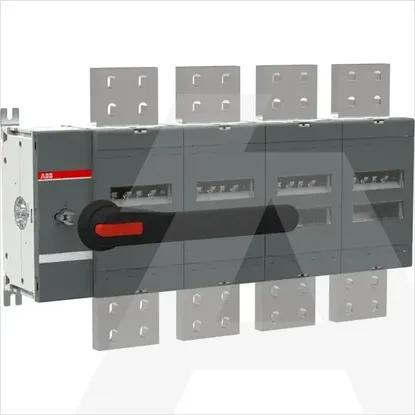

1SCA128482R1001 | OT3200E04P
Code: 1982607
ManufacturerABB
Catalog number1SCA128482R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019582689
Details
- •OT3200E04P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width654mm
Depth146mm
Number of auxiliary contacts as normally closed contact0
Height410mm
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Number of switches1
InterlockableNo
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Version as safety switchNo
Version as emergency stop installationNo
Colour control elementBlack
Version as main switchYes
Rated short-time withstand current lcw65kA
Rated operation power at AC-23, 400 V-kW
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Device constructionComplete device in housing
Motor drive optionalNo
Suitable for floor mountingNo
Switching power at 400 V-kW
Suitable for intermediate mountingNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V-A
With pre-assembled cablingNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)Other
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
