Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width654mm
Height410mm
Rated permanent current Iu-A
Number of auxiliary contacts as normally open contact0
Depth146mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of poles4
Version as main switchYes
Version as maintenance-/service switchYes
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Type of control elementLong turning handle
InterlockableNo
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Conditioned rated short-circuit current Iq-kA
Number of switches1
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw65kA
Width in number of modular spacings-
Max. rated operation voltage Ue AC1000V
Suitable for floor mountingNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitBolt connection
Motor drive optionalNo
Version as safety switchNo
Rated operating voltage1000 - 1000V
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V-A
Device constructionComplete device in housing
Voltage release optionalNo
Rated permanent current at AC-21, 400 V-A
With pre-assembled cablingNo
Switching power at 400 V-kW
Degree of protection (NEMA)Other
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

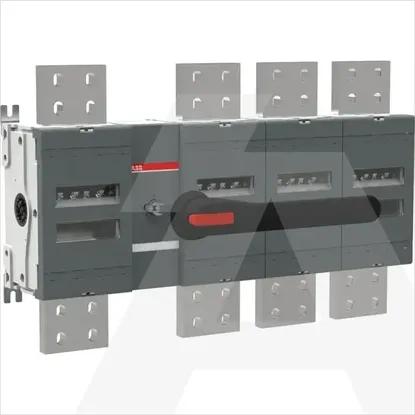

1SCA128487R1001 | OT3200E13P
