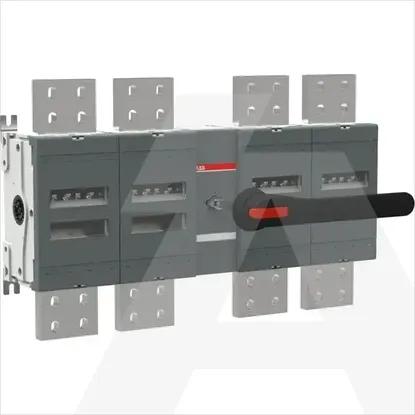

1SCA128488R1001 | OT3200E22P
Code: 1982610
ManufacturerABB
Catalog number1SCA128488R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019582764
Details
- •OT3200E22P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Height410mm
Width654mm
Degree of protection (IP), front sideIP00
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally open contact0
Depth146mm
Number of auxiliary contacts as change-over contact0
InterlockableNo
Rated short-time withstand current lcw65kA
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Number of switches1
Motor drive optionalNo
Motor drive integratedNo
Version as main switchYes
Suitable for floor mountingNo
Device constructionComplete device in housing
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Colour control elementBlack
Type of control elementLong turning handle
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Voltage release optionalNo
Version as safety switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)Other
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
