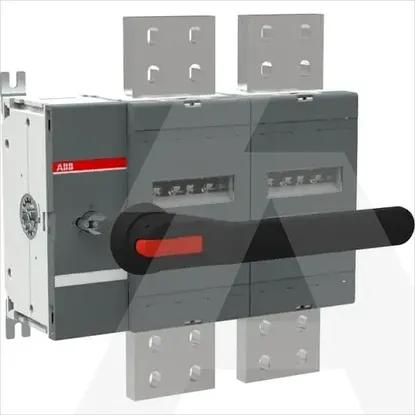

1SCA128581R1001 | OT3200E02P
Code: 1982611
ManufacturerABB
Catalog number1SCA128581R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019583730
Details
- •OT3200E02P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width374mm
Depth146mm
Height410mm
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Number of switches1
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq-kA
Version as emergency stop installationNo
InterlockableNo
Type of control elementLong turning handle
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Voltage release optionalNo
Suitable for distribution board installationYes
Rated short-time withstand current lcw65kA
Colour control elementBlack
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V-A
Version as main switchYes
Switching power at 400 V-kW
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Motor drive optionalNo
Device constructionComplete device in housing
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Version as reversing switchNo
Suitable for floor mountingNo
Rated permanent current Iu-A
Number of poles2
Max. rated operation voltage Ue AC1000V
