Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage1000 - 1000V
Width604mm
Number of poles3
Width in number of modular spacings-
Degree of protection (IP), front sideIP00
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact0
Depth146mm
Number of auxiliary contacts as normally closed contact0
Height410mm
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu-A
Rated operation power at AC-3, 400 V-kW
InterlockableNo
Number of switches1
Motor drive integratedNo
Version as main switchYes
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Type of control elementOther
Rated operation power at AC-23, 400 V-kW
Version as safety switchNo
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw65kA
Suitable for floor mountingNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Switching power at 400 V-kW
Device constructionComplete device in housing
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Version as reversing switchNo
Voltage release optionalNo
With pre-assembled cablingNo
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

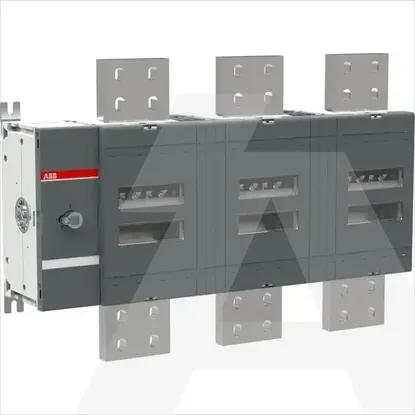

1SCA128598R1001 | OT3200E03W8
