Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
InterlockableNo
Number of poles4
Width789mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Rated operation power at AC-3, 400 V-kW
Depth146mm
Rated operating voltage1000 - 1000V
Number of switches1
Height410mm
Rated permanent current Iu-A
Width in number of modular spacings-
Number of auxiliary contacts as normally open contact0
Version as main switchYes
Version as emergency stop installationNo
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw100kA
Rated operation power at AC-23, 400 V-kW
Version as maintenance-/service switchYes
Version as safety switchNo
Colour control elementBlack
Rated permanent current at AC-21, 400 V-A
Suitable for floor mountingNo
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Degree of protection (NEMA)Other
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Voltage release optionalNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Switching power at 400 V-kW
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Suitable for front mounting centreNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

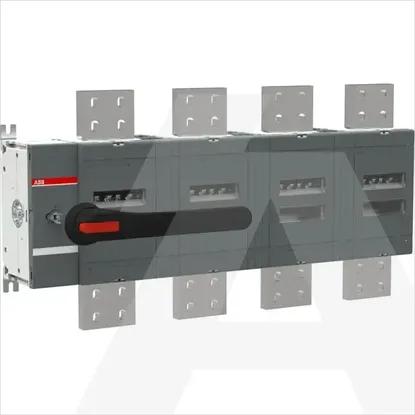

1SCA128666R1001 | OT4000E04W8P
