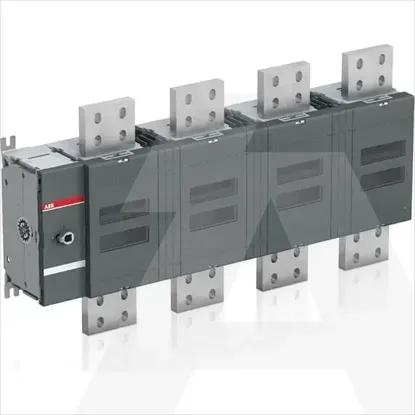

1SCA128675R1001 | OT4000E04W8
Code: 1982616
ManufacturerABB
Catalog number1SCA128675R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019584492
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Motor drive integratedNo
Height410mm
Version as emergency stop installationNo
Version as main switchYes
Depth146mm
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-3, 400 V-kW
Number of switches1
Width789mm
Type of control elementOther
InterlockableNo
Number of auxiliary contacts as normally open contact0
Width in number of modular spacings-
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Device constructionComplete device in housing
Version as reversing switchNo
Switching power at 400 V-kW
Motor drive optionalNo
Rated permanent current at AC-21, 400 V-A
Suitable for front mounting centreNo
With pre-assembled cablingNo
Suitable for floor mountingNo
Voltage release optionalNo
Degree of protection (NEMA)Other
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V-A
Suitable for distribution board installationYes
Rated short-time withstand current lcw-kA
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
