Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchYes
Rated permanent current Iu-A
Rated permanent current at AC-23, 400 V-A
Rated operating voltage1000 - 1000V
Version as reversing switchNo
Version as emergency stop installationNo
Version as safety switchNo
Number of switches1
Version as main switchYes
Conditioned rated short-circuit current Iq-kA
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-21, 400 V-A
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw80kA
Switching power at 400 V-kW
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of poles3
Suitable for floor mountingNo
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Number of auxiliary contacts as change-over contact0
InterlockableNo
Degree of protection (IP), front sideIP00
Voltage release optionalNo
Type of control elementOther
Degree of protection (NEMA)Other
Width604mm
Type of electrical connection of main circuitBolt connection
Suitable for front mounting centreNo
With pre-assembled cablingNo
Height410mm
Width in number of modular spacings-
Depth146mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

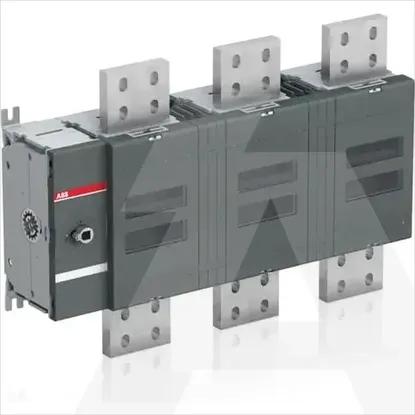

1SCA128686R1001 | OT4000E03W8
