Details
- •Low-voltage industrial components

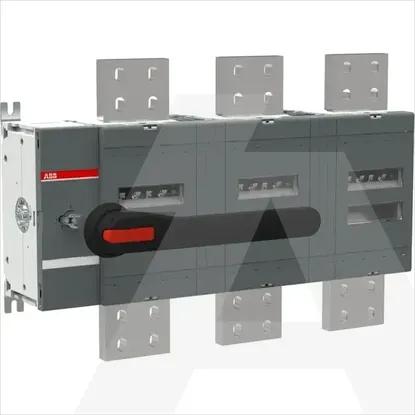

- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height410mm
Width604mm
Motor drive integratedNo
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Number of switches1
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of poles3
InterlockableNo
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
Depth146mm
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu-A
Rated permanent current at AC-21, 400 V-A
Colour control elementBlack
Version as reversing switchNo
Version as safety switchNo
Version as maintenance-/service switchYes
Motor drive optionalNo
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V-A
Voltage release optionalNo
With pre-assembled cablingNo
Device constructionComplete device in housing
Rated short-time withstand current lcw80kA
Type of control elementLong turning handle
Degree of protection (NEMA)Other
Switching power at 400 V-kW
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC1000V
Suitable for intermediate mountingNo
Version as main switchYes
Suitable for floor mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA128687R1001 | OT4000E03W8P
