Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height410mm
Width590mm
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Rated permanent current Iu-A
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Number of switches1
Number of poles3
Rated operating voltage1000 - 1000V
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Depth325mm
InterlockableYes
Type of control elementLong turning handle
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw55kA
Version as main switchYes
Suitable for front mounting 4-holeYes
Version as safety switchNo
Colour control elementBlack
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Device constructionBuilt-in device plug-in technique
With pre-assembled cablingNo
Switching power at 400 V-kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V-A
Motor drive optionalNo
Degree of protection (NEMA)1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

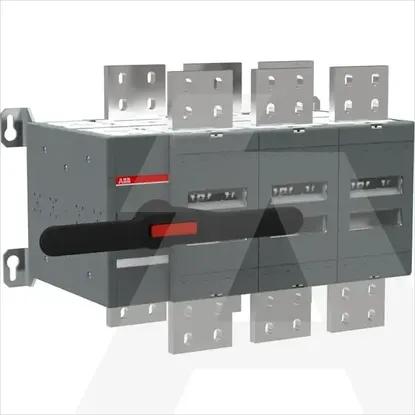

1SCA129156R1001 | OT3200E03CP
