Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width686.5mm
Height410mm
Number of poles3
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V-kW
Depth165mm
Version as safety switchNo
Rated permanent current Iu-A
Number of auxiliary contacts as normally open contact0
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Version as maintenance-/service switchNo
Width in number of modular spacings-
Type of control elementLong turning handle
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Degree of protection (IP), front sideIP00
InterlockableNo
Number of switches1
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Rated operation power at AC-23, 400 V-kW
Colour control elementBlack
Rated short-time withstand current lcw80kA
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Motor drive optionalNo
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)Other
Voltage release optionalNo
Suitable for distribution board installationYes
Version as reversing switchNo
Max. rated operation voltage Ue AC1000V
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Device constructionComplete device in housing
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

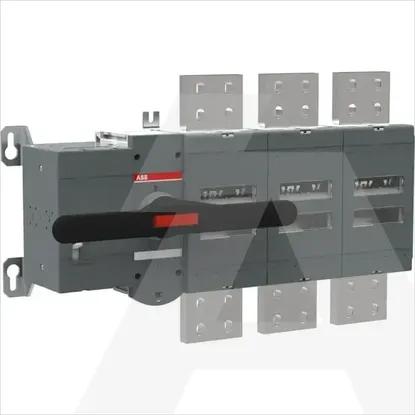

1SCA129195R1001 | OTM4000E3M230C
