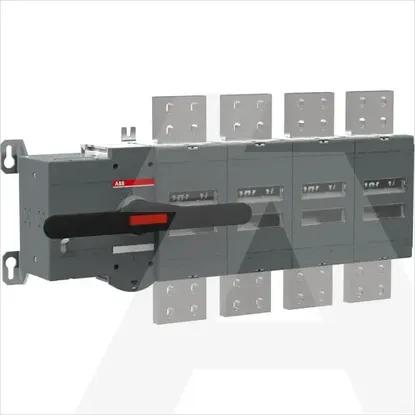

1SCA129198R1001 | OTM3200E4M230C
Code: 1982628
ManufacturerABB
Catalog number1SCA129198R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019588797
Details
- •OTM3200E4M230C MOTORIZED SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Depth165mm
Rated operation power at AC-3, 400 V-kW
Width826.5mm
Height410mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Number of switches1
Conditioned rated short-circuit current Iq-kA
Motor drive integratedNo
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
InterlockableNo
Version as main switchYes
Rated short-time withstand current lcw65kA
Version as safety switchNo
Type of control elementLong turning handle
Version as maintenance-/service switchNo
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Suitable for floor mountingNo
Colour control elementBlack
Rated operation power at AC-23, 400 V-kW
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeYes
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Degree of protection (NEMA)Other
Switching power at 400 V-kW
Voltage release optionalNo
Motor drive optionalNo
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
