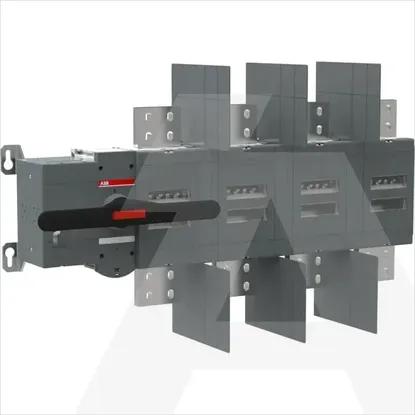

1SCA129207R1001 | OTM4000E4W8M230C
Code: 1982629
ManufacturerABB
Catalog number1SCA129207R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019589015
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq-kA
Height410mm
Depth165.5mm
Number of auxiliary contacts as normally open contact0
Width961.5mm
Width in number of modular spacings-
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
InterlockableNo
Number of auxiliary contacts as change-over contact0
Number of switches1
Degree of protection (IP), front sideIP00
Rated operation power at AC-23, 400 V-kW
Type of control elementLong turning handle
Motor drive integratedNo
Version as emergency stop installationNo
Colour control elementBlack
Voltage release optionalNo
Rated short-time withstand current lcw-kA
Suitable for distribution board installationYes
Version as maintenance-/service switchNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Version as safety switchNo
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Device constructionComplete device in housing
Motor drive optionalNo
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Version as main switchYes
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Type of electrical connection of main circuitBolt connection
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
