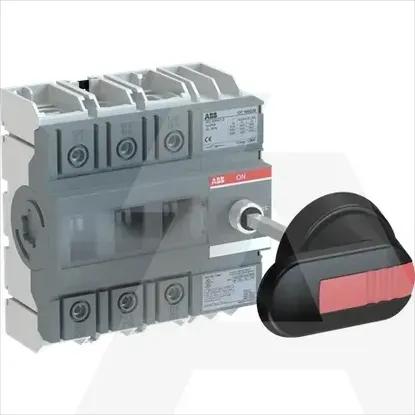

1SCA135138R1001 | OT160G30P
Code: 1982635
ManufacturerABB
Catalog number1SCA135138R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019638393
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width123mm
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq50kA
Rated operation power at AC-3, 400 V-kW
Depth73mm
Number of auxiliary contacts as normally closed contact0
Height130mm
Width in number of modular spacings-
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Type of control elementLong turning handle
Type of electrical connection of main circuitScrew connection
InterlockableNo
Rated operation power at AC-23, 400 V75kW
Version as main switchYes
Number of switches1
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Version as safety switchNo
Rated short-time withstand current lcw4kA
Colour control elementBlack
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V160A
Switching power at 400 V75kW
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V160A
With pre-assembled cablingNo
Rated permanent current Iu160A
Number of poles3
Max. rated operation voltage Ue AC1000V
