Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width123mm
Height130mm
Number of auxiliary contacts as normally open contact0
Depth73mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq50kA
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP20
Rated permanent current Iu160A
Number of poles3
Width in number of modular spacings-
Motor drive integratedNo
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Version as main switchYes
Max. rated operation voltage Ue AC1000V
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as change-over contact0
Number of switches1
InterlockableNo
Suitable for distribution board installationNo
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Version as emergency stop installationNo
Rated short-time withstand current lcw4kA
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V75kW
Suitable for floor mountingNo
Colour control elementBlack
Device constructionComplete device in housing
Switching power at 400 V75kW
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Version as reversing switchNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V160A
Voltage release optionalNo
Rated permanent current at AC-23, 400 V160A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

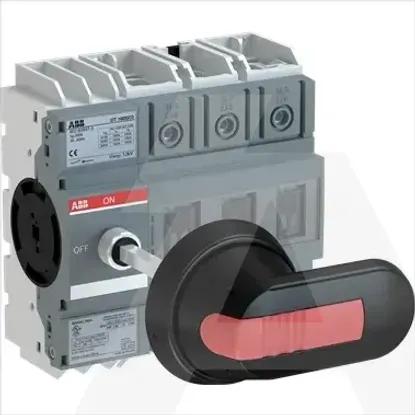

1SCA135139R1001 | OT160G03P
