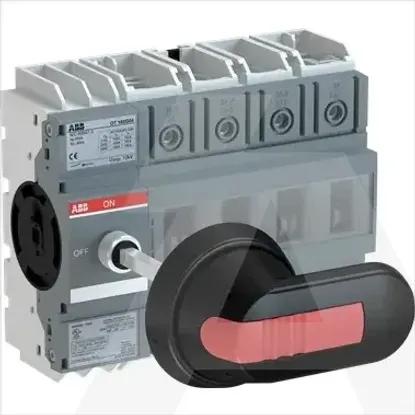

1SCA135140R1001 | OT160G04P
Code: 1982637
ManufacturerABB
Catalog number1SCA135140R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019638713
Details
- •OT160G04P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of switches1
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Height130mm
Degree of protection (IP), front sideIP20
Width in number of modular spacings-
Conditioned rated short-circuit current Iq50kA
Rated operating voltage1000 - 1000V
Depth73mm
Width150mm
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Version as main switchYes
Type of control elementLong turning handle
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
InterlockableNo
Version as emergency stop installationNo
Suitable for floor mountingNo
Colour control elementBlack
Suitable for front mounting centreNo
Rated short-time withstand current lcw4kA
Suitable for distribution board installationNo
Rated permanent current at AC-23, 400 V160A
Version as safety switchNo
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Degree of protection (NEMA)Other
Suitable for intermediate mountingNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V160A
Voltage release optionalNo
Version as reversing switchNo
Rated operation power at AC-23, 400 V75kW
Switching power at 400 V75kW
With pre-assembled cablingNo
Rated permanent current Iu160A
Number of poles4
Max. rated operation voltage Ue AC1000V
