Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of poles4
Height130mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu160A
Rated operation power at AC-3, 400 V-kW
Depth75mm
Width150mm
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq50kA
Degree of protection (IP), front sideIP20
InterlockableNo
Number of switches1
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingNo
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V75kW
Version as main switchYes
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Colour control elementBlack
Rated short-time withstand current lcw4kA
Version as safety switchNo
Device constructionComplete device in housing
Max. rated operation voltage Ue AC1000V
Switching power at 400 V75kW
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V160A
Motor drive optionalNo
Voltage release optionalNo
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V160A
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

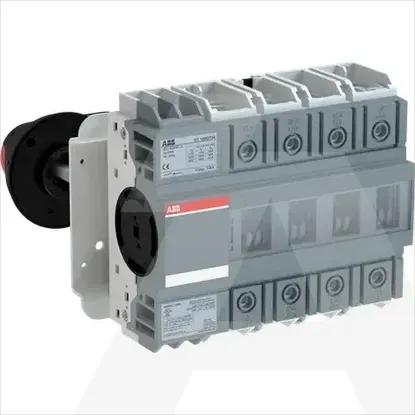

1SCA135142R1001 | OT160GT04P
