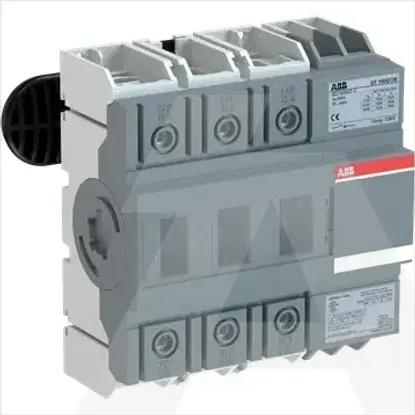

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of poles3
Depth75mm
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitScrew connection
Width123mm
Number of auxiliary contacts as normally open contact0
Number of switches1
Height130mm
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Motor drive integratedNo
Rated permanent current Iu160A
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
InterlockableNo
Type of control elementLong turning handle
Version as main switchYes
Version as safety switchNo
Suitable for intermediate mountingNo
Voltage release optionalNo
Colour control elementBlack
Motor drive optionalNo
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V75kW
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Rated permanent current at AC-23, 400 V160A
Device constructionComplete device in housing
Rated short-time withstand current lcw4kA
Suitable for distribution board installationNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V160A
Switching power at 400 V75kW
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA135143R1001 | OT160GT30P
