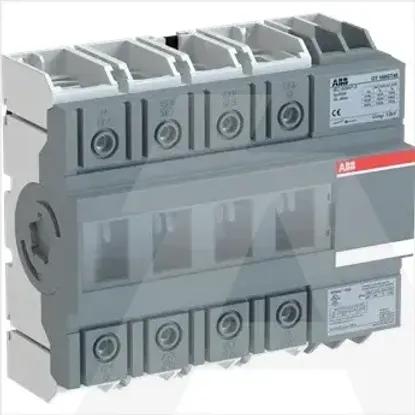

1SCA135144R1001 | OT160GT40P
Code: 1982641
ManufacturerABB
Catalog number1SCA135144R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019638751
Details
- •OT160GT40P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width150mm
Height130mm
Number of auxiliary contacts as normally open contact0
Width in number of modular spacings-
Number of auxiliary contacts as normally closed contact0
Depth75mm
Rated operating voltage1000 - 1000V
Number of switches1
Version as emergency stop installationNo
Degree of protection (IP), front sideIP20
InterlockableNo
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq50kA
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Version as maintenance-/service switchYes
Type of control elementLong turning handle
Version as safety switchNo
Rated short-time withstand current lcw4kA
Rated operation power at AC-23, 400 V75kW
Colour control elementBlack
Suitable for floor mountingNo
Suitable for front mounting centreNo
Device constructionComplete device in housing
Motor drive optionalNo
Suitable for intermediate mountingNo
Voltage release optionalNo
With pre-assembled cablingNo
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V160A
Rated permanent current at AC-21, 400 V160A
Degree of protection (NEMA)Other
Version as reversing switchNo
Switching power at 400 V75kW
Rated permanent current Iu160A
Number of poles4
Max. rated operation voltage Ue AC1000V
