Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu160A
Conditioned rated short-circuit current Iq30kA
Degree of protection (IP), front sideIP20
Number of poles3
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V-kW
Rated permanent current at AC-23, 400 V160A
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Version as safety switchNo
Rated short-time withstand current lcw4kA
Rated permanent current at AC-21, 400 V160A
Suitable for front mounting centreNo
Version as emergency stop installationNo
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Number of switches1
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Switching power at 400 V75kW
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
InterlockableNo
Type of control elementNone
Suitable for floor mountingNo
Suitable for distribution board installationNo
Motor drive integratedNo
Rated operation power at AC-23, 400 V75kW
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

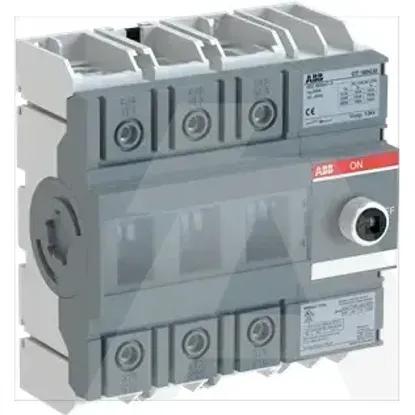

1SCA138207R1001 | OT160G30
