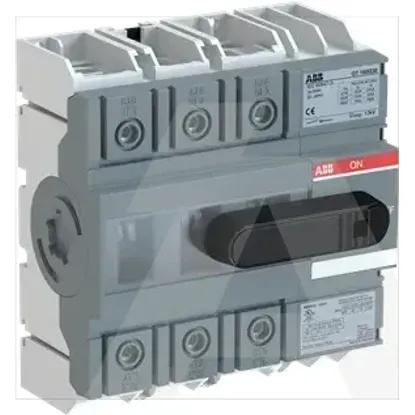

1SCA138209R1001 | OT160G30K
Code: 1982645
ManufacturerABB
Catalog number1SCA138209R1001
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019666198
Details
- •OT160G30K SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq24kA
Motor drive integratedNo
InterlockableYes
Number of auxiliary contacts as change-over contact0
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP20
Type of electrical connection of main circuitScrew connection
Number of switches1
Version as main switchYes
Version as safety switchNo
Suitable for front mounting 4-holeNo
Colour control elementBlack
Rated permanent current at AC-21, 400 V160A
Suitable for front mounting centreNo
Rated short-time withstand current lcw4kA
Suitable for floor mountingNo
Switching power at 400 V75kW
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V75kW
Suitable for distribution board installationNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Type of control elementLong turning handle
Rated permanent current at AC-23, 400 V160A
Degree of protection (NEMA)Other
Rated permanent current Iu160A
Number of poles3
Max. rated operation voltage Ue AC1000V
