Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu160A
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP20
Number of poles4
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitScrew connection
Version as main switchYes
InterlockableNo
Number of switches1
Type of control elementNone
Rated operation power at AC-3, 400 V-kW
Version as safety switchNo
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V75kW
Motor drive integratedNo
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq30kA
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V160A
Version as reversing switchNo
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-23, 400 V160A
Switching power at 400 V75kW
Motor drive optionalNo
Suitable for distribution board installationNo
Rated short-time withstand current lcw4kA
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

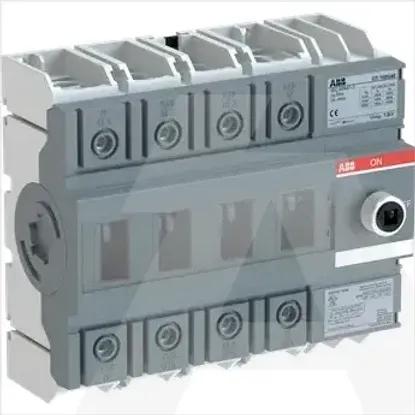

1SCA138213R1001 | OT160G40
