Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP20
Number of poles4
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq24kA
Motor drive integratedNo
Rated permanent current Iu160A
Version as maintenance-/service switchYes
InterlockableYes
Version as safety switchNo
Rated operation power at AC-23, 400 V75kW
Version as main switchYes
Type of control elementLong turning handle
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Rated short-time withstand current lcw4kA
Number of switches1
Type of electrical connection of main circuitScrew connection
Colour control elementBlack
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V160A
Max. rated operation voltage Ue AC1000V
Version as reversing switchNo
Voltage release optionalNo
Switching power at 400 V75kW
Rated permanent current at AC-23, 400 V160A
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

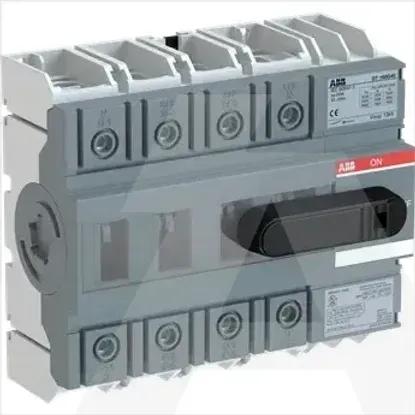

1SCA138214R1001 | OT160G40K
