Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Width150mm
Width in number of modular spacings-
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Height130mm
Rated permanent current Iu160A
Number of poles4
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq50kA
InterlockableNo
Depth73mm
Number of switches1
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP20
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V75kW
Suitable for front mounting centreNo
Colour control elementBlack
Voltage release optionalNo
Suitable for distribution board installationNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V160A
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Rated short-time withstand current lcw4kA
Version as reversing switchNo
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V160A
Degree of protection (NEMA)Other
Motor drive optionalNo
Switching power at 400 V75kW
Max. rated operation voltage Ue AC1000V
Suitable for front mounting 4-holeNo
Version as safety switchNo
Type of control elementLong turning handle
Version as main switchYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

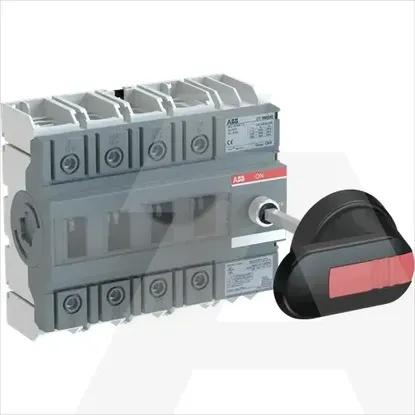

1SCA138216R1001 | OT160G40P
