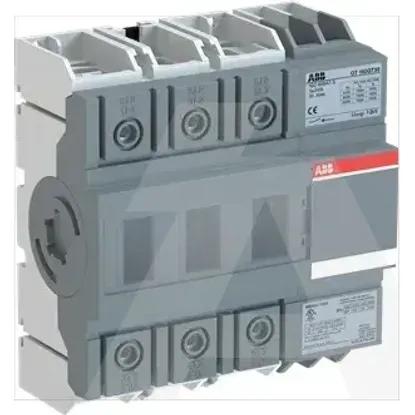

1SCA138220R1001 | OT160GT30
Code: 1982649
ManufacturerABB
Catalog number1SCA138220R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019666280
Details
- •OT160GT30 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth75mm
Width123mm
Height130mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Type of control elementOther
Width in number of modular spacings-
Rated short-time withstand current lcw4kA
Rated operation power at AC-23, 400 V75kW
Conditioned rated short-circuit current Iq50kA
Number of switches1
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Rated operating voltage1000 - 1000V
Version as main switchYes
InterlockableNo
Degree of protection (IP), front sideIP20
Version as emergency stop installationNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V160A
Switching power at 400 V75kW
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V160A
Device constructionComplete device in housing
Degree of protection (NEMA)Other
Voltage release optionalNo
Rated permanent current Iu160A
Number of poles3
Max. rated operation voltage Ue AC1000V
