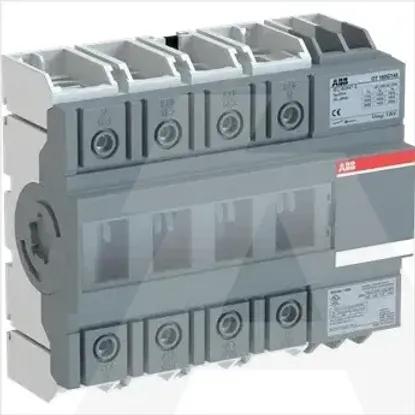

1SCA138221R1001 | OT160GT40
Code: 1982650
ManufacturerABB
Catalog number1SCA138221R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019666297
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width150mm
Height130mm
Depth75mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Type of control elementOther
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Number of switches1
Conditioned rated short-circuit current Iq50kA
InterlockableNo
Width in number of modular spacings-
Type of electrical connection of main circuitScrew connection
Rated operating voltage1000 - 1000V
Suitable for floor mountingNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Rated short-time withstand current lcw4kA
Suitable for front mounting 4-holeNo
Version as safety switchNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V75kW
Version as maintenance-/service switchYes
Version as reversing switchNo
Degree of protection (NEMA)Other
Motor drive optionalNo
Device constructionComplete device in housing
Voltage release optionalNo
Rated permanent current at AC-23, 400 V160A
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V160A
Switching power at 400 V75kW
Rated permanent current Iu160A
Number of poles4
Max. rated operation voltage Ue AC1000V
