Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width331mm
Height150mm
Number of auxiliary contacts as change-over contact0
Depth285mm
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP00
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Number of switches1
Rated permanent current Iu250A
Motor drive integratedNo
Number of poles4
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
Version as maintenance-/service switchNo
Type of control elementLong turning handle
Version as main switchYes
Version as safety switchNo
Rated operation power at AC-23, 400 V140kW
Version as emergency stop installationNo
Suitable for front mounting 4-holeYes
Colour control elementBlack
Suitable for floor mountingNo
Suitable for distribution board installationYes
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V250A
Motor drive optionalNo
Suitable for intermediate mountingNo
Version as reversing switchNo
Suitable for front mounting centreNo
Device constructionComplete device in housing
Voltage release optionalNo
Switching power at 400 V140kW
Rated permanent current at AC-21, 400 V250A
Degree of protection (NEMA)Other
Max. rated operation voltage Ue AC1000V
Rated short-time withstand current lcw8kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

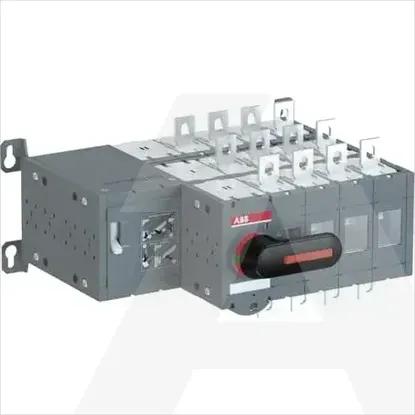

1SCA140870R1001 | OTM250E4YM230C
