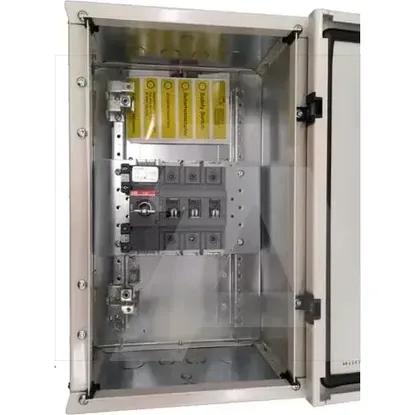

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width250mm
Height400mm
Depth180mm
Number of auxiliary contacts as normally closed contact1
Conditioned rated short-circuit current Iq-kA
Number of poles3
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP65
Width in number of modular spacings-
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu90A
Number of auxiliary contacts as normally open contact1
InterlockableYes
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Number of switches1
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Type of control elementLong turning handle
Version as safety switchYes
Version as maintenance-/service switchYes
Version as main switchYes
Rated short-time withstand current lcw4kA
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingNo
Version as emergency stop installationNo
Motor drive integratedNo
Rated operation power at AC-23, 400 V45kW
Device constructionComplete device in housing
Voltage release optionalNo
With pre-assembled cablingNo
Version as reversing switchNo
Motor drive optionalNo
Degree of protection (NEMA)Other
Max. rated operation voltage Ue AC1000V
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V90A
Switching power at 400 V45kW
Rated permanent current at AC-21, 400 V-A
Suitable for distribution board installationYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA148210R1001 | OT90GTUU3TZ
