Details
- •Low-voltage industrial components

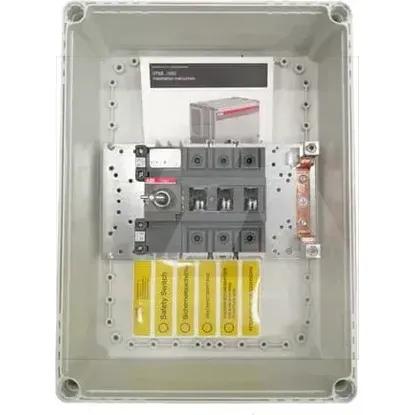

- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact1
Width280mm
Height380mm
Rated permanent current Iu125A
Depth130mm
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V-kW
Number of poles3
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitScrew connection
Number of switches1
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Motor drive optionalNo
Rated short-time withstand current lcw4kA
Version as emergency stop installationNo
Motor drive integratedNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Version as main switchYes
Max. rated operation voltage Ue AC1000V
Voltage release optionalNo
Width in number of modular spacings-
Suitable for front mounting 4-holeNo
Colour control elementRed
InterlockableYes
Rated operation power at AC-23, 400 V55kW
Type of control elementLong turning handle
Version as safety switchYes
Version as maintenance-/service switchYes
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V55kW
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V125A
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA148607R1001 | OT125GFCC3A
