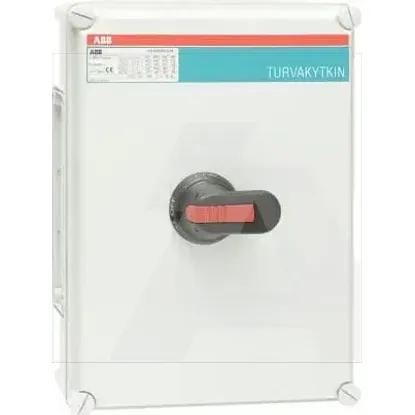

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu160A
Number of auxiliary contacts as change-over contact0
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq24kA
Number of auxiliary contacts as normally closed contact0
Number of switches1
Number of poles3
Degree of protection (IP), front sideIP65
InterlockableNo
Rated operation power at AC-23, 400 V88kW
Rated short-time withstand current lcw8kA
Version as main switchYes
Suitable for floor mountingNo
Colour control elementBlack
Suitable for front mounting centreNo
Version as emergency stop installationNo
Type of control elementLong turning handle
Version as maintenance-/service switchNo
Suitable for front mounting 4-holeYes
Suitable for distribution board installationNo
Version as safety switchNo
Motor drive integratedNo
Suitable for intermediate mountingNo
Type of electrical connection of main circuitBolt connection
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-21, 400 V160A
Version as reversing switchNo
Rated permanent current at AC-23, 400 V160A
Device constructionComplete device in housing
Motor drive optionalNo
Degree of protection (NEMA)Other
Switching power at 400 V88kW
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA148615R1001 | OT160EVFCC3B
