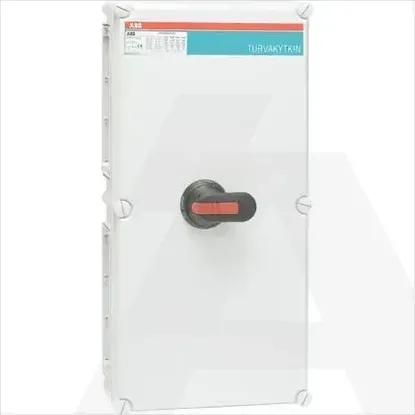

1SCA148656R1001 | OT160EVFCC3T
Code: 1982666
ManufacturerABB
Catalog number1SCA148656R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019782065
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width280mm
Height560mm
Depth130mm
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
InterlockableYes
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally open contact2
Version as emergency stop installationNo
Version as safety switchYes
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchYes
Number of switches1
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Version as main switchYes
Rated operation power at AC-23, 400 V80kW
Type of control elementLong turning handle
Colour control elementBlack
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw8kA
Suitable for floor mountingNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Motor drive optionalNo
Rated permanent current at AC-23, 400 V160A
Switching power at 400 V80kW
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Rated permanent current Iu160A
Number of poles3
Max. rated operation voltage Ue AC1000V
