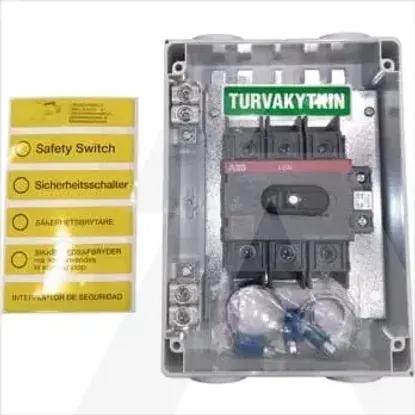

1SCA149375R1001 | OTE63T3M
Code: 1982667
ManufacturerABB
Catalog number1SCA149375R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019791340
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Depth90mm
Rated operation power at AC-3, 400 V-kW
Rated operating voltage750 - 750V
Conditioned rated short-circuit current Iq-kA
Height200mm
Width145mm
Number of auxiliary contacts as normally open contact1
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as safety switchYes
Degree of protection (IP), front sideIP65
Version as maintenance-/service switchYes
Colour control elementBlack
Type of control elementTurn button
Motor drive integratedNo
Version as main switchYes
Rated operation power at AC-23, 400 V30kW
InterlockableYes
Version as emergency stop installationNo
Rated short-time withstand current lcw2.5kA
Width in number of modular spacings-
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Motor drive optionalNo
With pre-assembled cablingNo
Switching power at 400 V30kW
Rated permanent current at AC-23, 400 V63A
Version as reversing switchNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Degree of protection (NEMA)Other
Rated permanent current Iu115A
Number of poles3
Max. rated operation voltage Ue AC750V
