Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of poles4
InterlockableNo
Rated operating voltage- - -V
Number of auxiliary contacts as normally closed contact0
Depth183mm
Version as emergency stop installationNo
Width in number of modular spacings-
Degree of protection (IP), front sideIP20
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-3, 400 V-kW
Version as safety switchNo
Rated permanent current Iu-A
Rated operation power at AC-23, 400 V-kW
Version as maintenance-/service switchYes
Type of control elementLong turning handle
Width375mm
Number of switches1
Motor drive integratedYes
Version as main switchYes
Height305mm
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw-kA
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Version as reversing switchNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V-A
Max. rated operation voltage Ue AC480V
Rated permanent current at AC-21, 400 V-A
Suitable for floor mountingNo
With pre-assembled cablingNo
Degree of protection (NEMA)1
Device constructionBuilt-in device plug-in technique
Voltage release optionalNo
Switching power at 400 V-kW
Suitable for front mounting centreNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

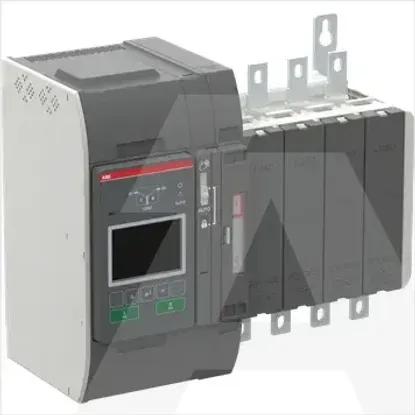

1SCA153253R1001 | OXA100U3S3QB
