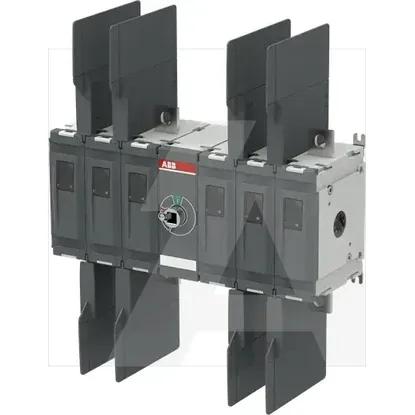

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth135mm
Height211mm
Width353.5mm
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu500A
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Suitable for floor mountingNo
Number of auxiliary contacts as change-over contact0
Number of poles6
Version as maintenance-/service switchYes
Conditioned rated short-circuit current Iq-kA
Rated short-time withstand current lcw-kA
Version as emergency stop installationNo
Version as safety switchNo
Motor drive integratedNo
InterlockableNo
Type of electrical connection of main circuitBolt connection
Type of control elementOther
Version as main switchYes
Rated operating voltage1000 - 1000V
Number of switches1
Rated operation power at AC-23, 400 V-kW
Degree of protection (IP), front sideIP20
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Motor drive optionalNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Max. rated operation voltage Ue AC-V
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Switching power at 400 V-kW
Version as reversing switchNo
Degree of protection (NEMA)1
Device constructionBuilt-in device fixed built-in technique
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA158288R1001 | OTDC500F33
