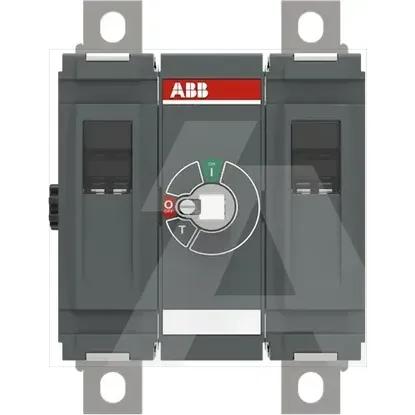

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Depth135mm
Rated operation power at AC-3, 400 V-kW
Height211mm
Width157.5mm
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP20
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
InterlockableNo
Number of poles2
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Rated permanent current Iu630A
Version as emergency stop installationNo
Number of switches1
Version as safety switchNo
Type of control elementOther
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting centreNo
Version as main switchYes
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeYes
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Rated short-time withstand current lcw-kA
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC-V
Motor drive optionalNo
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V-A
Degree of protection (NEMA)1
Voltage release optionalNo
Switching power at 400 V-kW
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA158853R1001 | OTDC800F11
