Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Overload release current setting20 - 20A
Number of auxiliary contacts as change-over contact0
Degree of protection (IP)IP20
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range short-term delayed short-circuit release- - -A
Rated voltage240 - 347V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz35kA
Adjustment range undelayed short-circuit release500 - 500A
With switched-off indicatorNo
Position of connection for main current circuitFront side
Type of control elementToggle
Type of electrical connection of main circuitBolt connection
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalYes
With under voltage releaseNo
Rated permanent current Iu20A
Number of poles3
With integrated under voltage releaseNo
Integrated earth fault protectionNo
Motor drive integratedNo
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

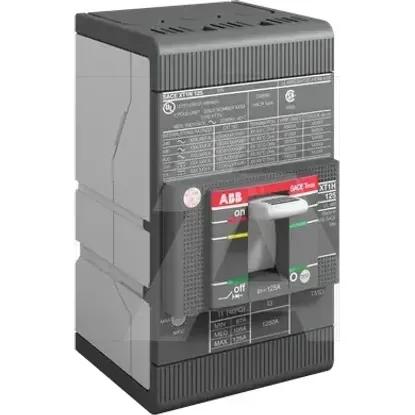

1SDA074665R1 | XT1S 125 TMF 20-500 3p F F UL/CSA
