Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu125A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Conditioned rated short-circuit current Iq-kA
Rated operating voltage0 - 347V
Number of switches-
Number of poles3
Suitable for front mounting centreNo
Colour control elementWhite
Rated short-time withstand current lcw-kA
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V-kW
Suitable for floor mountingNo
Version as safety switchNo
InterlockableYes
Version as main switchYes
Version as emergency stop installationNo
Version as maintenance-/service switchNo
Type of electrical connection of main circuitBolt connection
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Voltage release optionalYes
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V-kW
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V-A
Motor drive optionalYes
Max. rated operation voltage Ue AC347V
Rated permanent current at AC-21, 400 V125A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

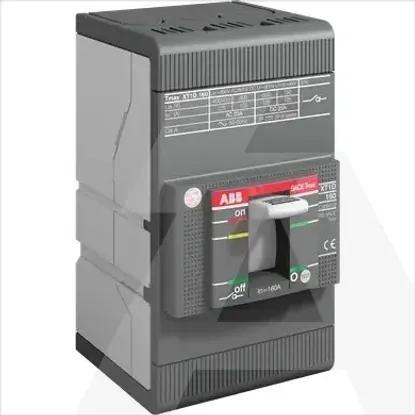

1SDA075614R1 | XT1H-D 125 MCS-UL/CSA Im=1500 3p F F
