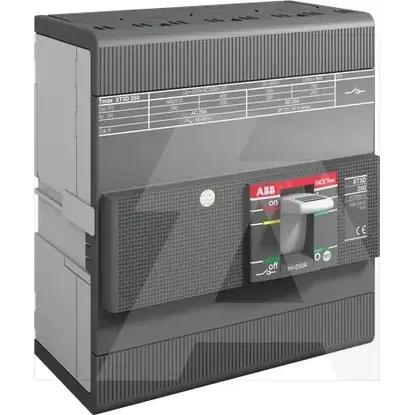

1SDA075617R1 | XT3N-D 225 MCS-UL/CSA Im=2700 4p F F
Code: 1983809
ManufacturerABB
Catalog number1SDA075617R1
TypeSwitch disconnector
CategorySwitch disconnector
EAN code8015644795948
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Number of switches-
Degree of protection (IP), front sideIP20
Motor drive integratedNo
Rated operating voltage0 - 347V
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Version as safety switchNo
Version as main switchYes
InterlockableYes
Suitable for floor mountingNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Rated short-time withstand current lcw-kA
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
Colour control elementWhite
Suitable for front mounting centreNo
Degree of protection (NEMA)1
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V225A
Motor drive optionalYes
Version as reversing switchNo
Voltage release optionalYes
Rated operation power at AC-23, 400 V-kW
Rated permanent current Iu225A
Number of poles4
Max. rated operation voltage Ue AC347V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
