Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles3
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Rated permanent current Iu125A
Number of switches-
Number of auxiliary contacts as normally open contact0
InterlockableYes
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as change-over contact0
Rated operating voltage0 - 600V
Version as main switchYes
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw-kA
Version as maintenance-/service switchNo
Suitable for floor mountingNo
Colour control elementWhite
Version as safety switchNo
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V-A
Suitable for intermediate mountingNo
Switching power at 400 V-kW
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Degree of protection (NEMA)1
Max. rated operation voltage Ue AC600V
Rated permanent current at AC-21, 400 V125A
Version as reversing switchNo
Motor drive optionalYes
Voltage release optionalYes
Device constructionBuilt-in device fixed built-in technique
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

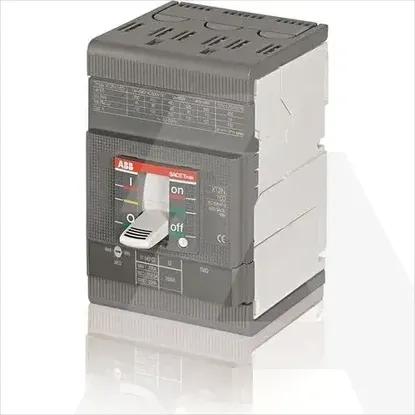

1SDA076623R1 | XT2V-D 125 MCS-UL/CSA Im=1500 3p F F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of poles
3
Motor drive integrated
Degree of protection (IP), front side
IP20
Rated permanent current Iu
125A
Number of switches
-
Number of auxiliary contacts as normally open contact
0
Interlockable
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Bolt connection
Number of auxiliary contacts as change-over contact
0
Rated operating voltage
0 .. 600V
Version as main switch
Version as emergency stop installation
Rated operation power at AC-3, 400 V
-kW
Conditioned rated short-circuit current Iq
-kA
Rated operation power at AC-23, 400 V
-kW
Rated short-time withstand current lcw
-kA
Version as maintenance-/service switch
Suitable for floor mounting
Colour control element
White
Version as safety switch
Suitable for front mounting centre
Rated permanent current at AC-23, 400 V
-A
Suitable for intermediate mounting
Switching power at 400 V
-kW
Suitable for front mounting 4-hole
Suitable for distribution board installation
Degree of protection (NEMA)
1
Max. rated operation voltage Ue AC
600V
Rated permanent current at AC-21, 400 V
125A
Version as reversing switch
Motor drive optional
Voltage release optional
Device construction
Built-in device fixed built-in technique
