Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw50kA
Motor drive integratedNo
Rated operating voltage600 - 600V
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Version as safety switchNo
Type of control elementPush button
InterlockableYes
Rated permanent current Iu800 A
Version as main switchYes
Version as emergency stop installationNo
Number of switches0
Degree of protection (IP), front sideIP30
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchNo
Suitable for front mounting 4-holeNo
Colour control elementOther
Suitable for floor mountingNo
Number of poles3
Degree of protection (NEMA)Other
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
Motor drive optionalYes
Rated permanent current at AC-21, 400 V800 A
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V800 A
Voltage release optionalYes
Max. rated operation voltage Ue AC600V
Switching power at 400 V-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

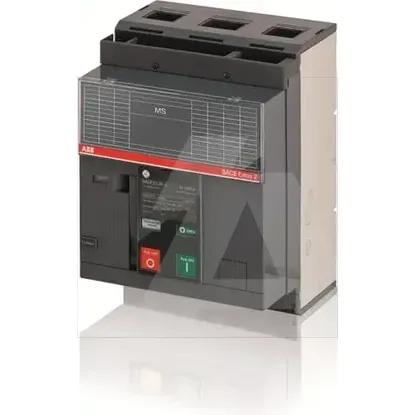

1SDA079550R1 | E1.2N-A/MS 800 3p F F
