Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles4
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP30
Rated operation power at AC-23, 400 V-kW
Version as emergency stop installationNo
Version as maintenance-/service switchNo
InterlockableYes
Version as main switchYes
Rated operating voltage600 - 600V
Rated operation power at AC-3, 400 V-kW
Version as safety switchNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Number of switches0
Rated permanent current Iu800 A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Type of control elementPush button
Rated permanent current at AC-21, 400 V800 A
Switching power at 400 V-kW
Rated short-time withstand current lcw42kA
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)Other
Voltage release optionalYes
Colour control elementOther
Suitable for floor mountingNo
Motor drive optionalYes
Version as reversing switchNo
Max. rated operation voltage Ue AC600V
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V800 A
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

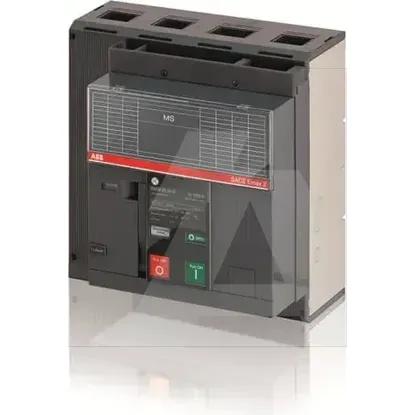

1SDA079552R1 | E1.2B-A/MS 800 4p F F
