Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Motor drive integratedNo
InterlockableYes
Number of poles4
Rated permanent current Iu1200A
Degree of protection (IP), front sideIP30
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Version as emergency stop installationNo
Rated operating voltage600 - 600V
Number of switches0
Conditioned rated short-circuit current Iq-kA
Type of control elementPush button
Version as safety switchNo
Colour control elementOther
Suitable for front mounting 4-holeNo
Motor drive optionalYes
Degree of protection (NEMA)Other
Suitable for distribution board installationYes
Voltage release optionalYes
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V1200A
Suitable for floor mountingNo
Switching power at 400 V-kW
Device constructionBuilt-in device slide-in technique (withdrawable)
Version as reversing switchNo
Rated short-time withstand current lcw42kA
Version as maintenance-/service switchNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC600V
Rated operation power at AC-23, 400 V-kW
Rated permanent current at AC-21, 400 V1200A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

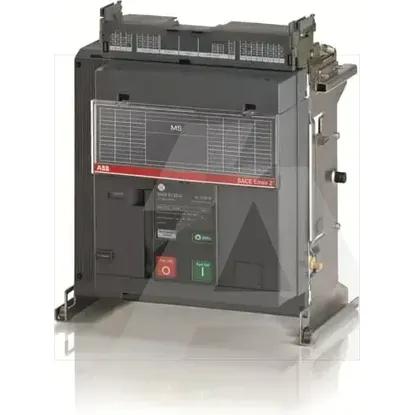

1SDA079561R1 | E1.2B-A/MS 1200 4p WMP
