Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
InterlockableYes
Degree of protection (IP), front sideIP30
Rated operation power at AC-3, 400 V-kW
Motor drive integratedNo
Number of poles4
Rated permanent current Iu1600A
Number of auxiliary contacts as change-over contact0
Number of switches0
Rated operating voltage600 - 600V
Conditioned rated short-circuit current Iq-kA
Type of control elementPush button
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchNo
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC600V
Motor drive optionalYes
Suitable for floor mountingNo
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V1600A
Suitable for front mounting 4-holeNo
Voltage release optionalYes
Version as main switchYes
Suitable for intermediate mountingNo
Rated short-time withstand current lcw85kA
Colour control elementOther
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Switching power at 400 V-kW
Degree of protection (NEMA)Other
Version as reversing switchNo
Rated permanent current at AC-23, 400 V1600A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

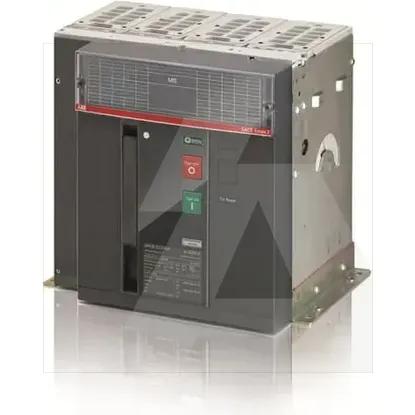

1SDA079576R1 | E2.2V-A/MS 1600 4p F HR
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Interlockable
Degree of protection (IP), front side
IP30
Rated operation power at AC-3, 400 V
-kW
Motor drive integrated
Number of poles
4
Rated permanent current Iu
1600A
Number of auxiliary contacts as change-over contact
0
Number of switches
0
Rated operating voltage
600 .. 600V
Conditioned rated short-circuit current Iq
-kA
Type of control element
Push button
Version as emergency stop installation
Type of electrical connection of main circuit
Bolt connection
Version as maintenance-/service switch
Device construction
Built-in device fixed built-in technique
Suitable for front mounting centre
Max. rated operation voltage Ue AC
600V
Motor drive optional
Suitable for floor mounting
Suitable for distribution board installation
Rated permanent current at AC-21, 400 V
1600A
Suitable for front mounting 4-hole
Voltage release optional
Version as main switch
Suitable for intermediate mounting
Rated short-time withstand current lcw
85kA
Colour control element
Other
Version as safety switch
Rated operation power at AC-23, 400 V
-kW
Switching power at 400 V
-kW
Degree of protection (NEMA)
Other
Version as reversing switch
Rated permanent current at AC-23, 400 V
1600A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
