Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage600 - 600V
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of poles3
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP30
Rated permanent current Iu800 A
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitBolt connection
InterlockableYes
Version as emergency stop installationNo
Motor drive integratedNo
Type of control elementPush button
Suitable for floor mountingNo
Device constructionBuilt-in device slide-in technique (withdrawable)
Suitable for front mounting centreNo
Voltage release optionalYes
Rated permanent current at AC-21, 400 V800 A
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Colour control elementOther
Version as reversing switchNo
Switching power at 400 V-kW
Max. rated operation voltage Ue AC600V
Rated operation power at AC-23, 400 V-kW
Motor drive optionalYes
Version as main switchYes
Rated short-time withstand current lcw85kA
Version as maintenance-/service switchNo
Version as safety switchNo
Number of switches0
Rated permanent current at AC-23, 400 V800 A
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

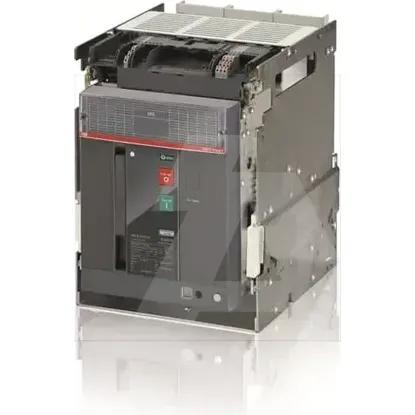

1SDA079583R1 | E2.2V-A/MS 800 3p WMP
