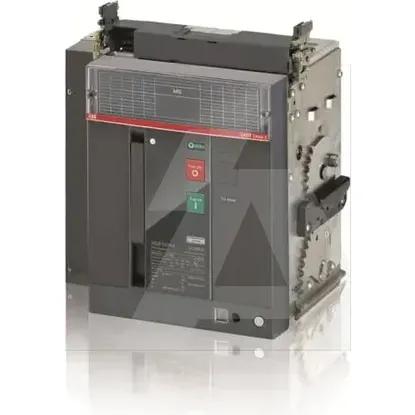

1SDA079593R1 | E2.2V-A/MS 2000 4p WMP
Code: 1985696
ManufacturerABB
Catalog number1SDA079593R1
TypeSwitch disconnector
CategorySwitch disconnector
EAN code8015644860165
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage600 - 600V
Degree of protection (IP), front sideIP30
InterlockableYes
Number of auxiliary contacts as change-over contact0
Number of switches0
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Type of control elementPush button
Version as main switchYes
Version as maintenance-/service switchNo
Suitable for front mounting 4-holeNo
Version as safety switchNo
Suitable for floor mountingNo
Rated short-time withstand current lcw85kA
Colour control elementOther
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Device constructionBuilt-in device slide-in technique (withdrawable)
Voltage release optionalYes
Rated permanent current at AC-21, 400 V2000A
Motor drive optionalYes
Switching power at 400 V-kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V2000A
Degree of protection (NEMA)Other
Rated permanent current Iu2000A
Number of poles4
Max. rated operation voltage Ue AC600V
