Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Rated operating voltage600 - 600V
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu2000A
InterlockableYes
Conditioned rated short-circuit current Iq-kA
Number of switches0
Number of poles4
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP30
Version as emergency stop installationNo
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Type of control elementPush button
Rated operation power at AC-23, 400 V-kW
Colour control elementOther
Rated short-time withstand current lcw50kA
Version as maintenance-/service switchNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Version as safety switchNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Voltage release optionalYes
Version as reversing switchNo
Motor drive optionalYes
Rated permanent current at AC-23, 400 V2000A
Max. rated operation voltage Ue AC600V
Rated permanent current at AC-21, 400 V2000A
Device constructionBuilt-in device slide-in technique (withdrawable)
Switching power at 400 V-kW
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

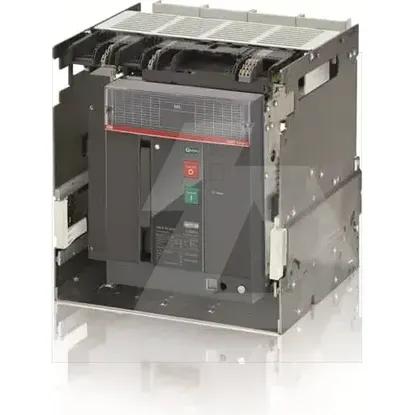

1SDA079595R1 | E2.2N-A/MS 2000 4p WMP
