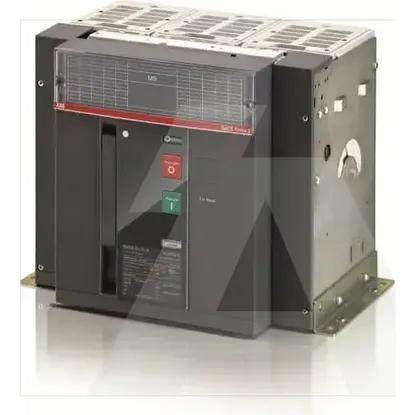

1SDA079603R1 | E4.2V-A/MS 3200 3p F HR
Code: 1985702
ManufacturerABB
Catalog number1SDA079603R1
TypeSwitch disconnector
CategorySwitch disconnector
EAN code8015644860264
Details
- •ZRACNI PREKIDAC EMAX2
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Type of control elementPush button
Number of switches0
Version as safety switchNo
Version as emergency stop installationNo
Version as main switchYes
Motor drive integratedNo
InterlockableYes
Degree of protection (IP), front sideIP30
Type of electrical connection of main circuitBolt connection
Rated operating voltage600 - 600V
Conditioned rated short-circuit current Iq-kA
Version as maintenance-/service switchNo
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw85kA
Rated permanent current at AC-23, 400 V3200A
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalYes
Rated permanent current at AC-21, 400 V3200A
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Switching power at 400 V-kW
Suitable for distribution board installationYes
Colour control elementOther
Degree of protection (NEMA)Other
Suitable for floor mountingNo
Voltage release optionalYes
Rated permanent current Iu3200A
Number of poles3
Max. rated operation voltage Ue AC600V
