Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of poles4
Rated permanent current Iu2500A
Degree of protection (IP), front sideIP30
Conditioned rated short-circuit current Iq-kA
Rated operating voltage600 - 600V
Number of auxiliary contacts as change-over contact0
Type of control elementPush button
Version as safety switchNo
Number of switches0
Version as emergency stop installationNo
Version as maintenance-/service switchNo
Colour control elementOther
Rated operation power at AC-23, 400 V-kW
Suitable for floor mountingNo
Suitable for front mounting centreNo
InterlockableYes
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw85kA
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Rated permanent current at AC-23, 400 V2500A
Suitable for distribution board installationYes
Voltage release optionalYes
Max. rated operation voltage Ue AC600V
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalYes
Switching power at 400 V-kW
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V2500A
Version as reversing switchNo
Version as main switchYes
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

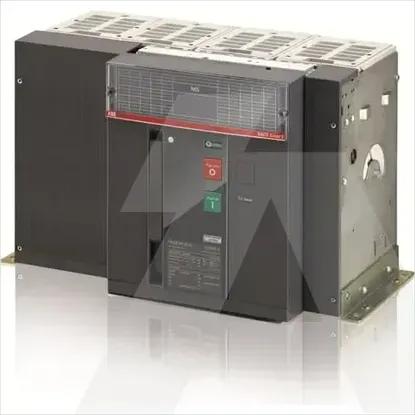

1SDA079618R1 | E4.2V-A/MS 2500 4p F HR
