Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage600 - 600V
Number of poles3
Degree of protection (IP), front sideIP30
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu2500A
Motor drive integratedNo
InterlockableYes
Type of electrical connection of main circuitBolt connection
Number of switches0
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact0
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Suitable for distribution board installationYes
Device constructionBuilt-in device slide-in technique (withdrawable)
Suitable for floor mountingNo
Switching power at 400 V-kW
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V2500A
Voltage release optionalYes
Version as reversing switchNo
Version as main switchYes
Suitable for intermediate mountingNo
Motor drive optionalYes
Max. rated operation voltage Ue AC600V
Version as maintenance-/service switchNo
Suitable for front mounting 4-holeNo
Colour control elementOther
Suitable for front mounting centreNo
Type of control elementPush button
Rated short-time withstand current lcw65kA
Rated permanent current at AC-23, 400 V2500A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

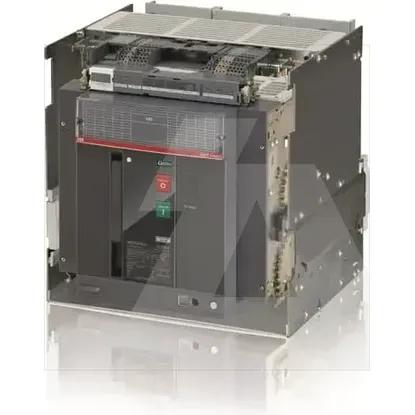

1SDA079628R1 | E4.2S-A/MS 2500 3p WMP
